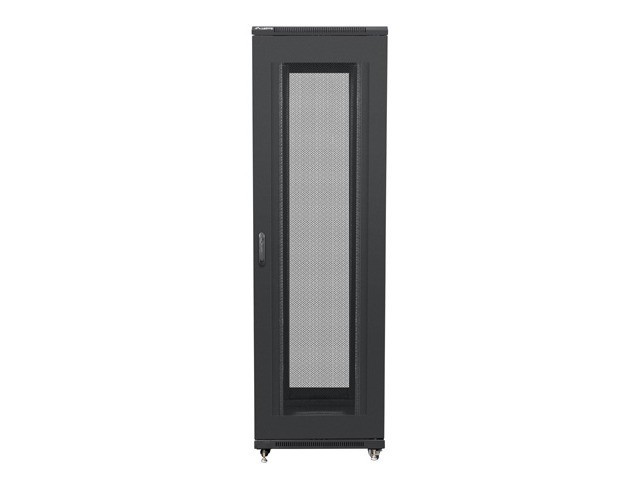

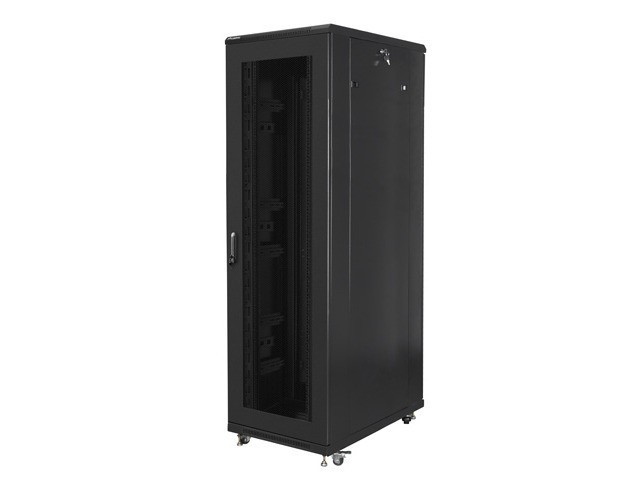

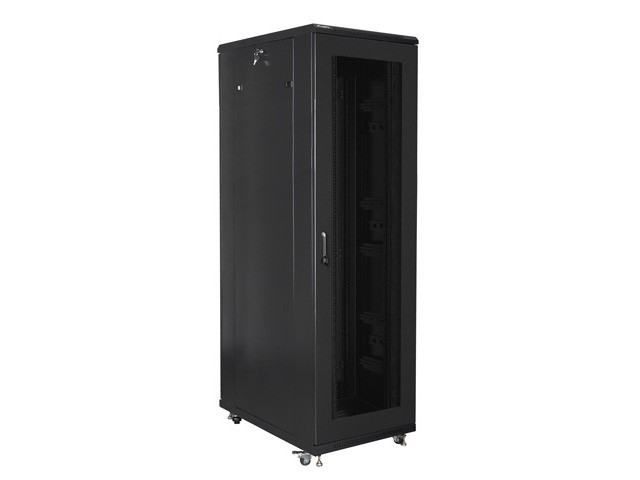

RACKSCHRANK 19" FREISTEHEND 42U/800X1000 MIT PERFORIERTER TÜR SCHWARZ (MONTIERT)

Lanberg FA01-8042-23B composite freestanding cabinet is a ready-made solution for network expansion, installation of cabling and equipment with a size of 19" and a maximum load capacity of 800 kg. It can be used in networks, server rooms, small and medium-sized businesses and data centers that need a lot of rack space for network equipment.

What's more, this particular cabinet can also work with low-voltage systems such as cable TV networks, alarm systems, fire and access control systems, CCTV or IP surveillance.

The structure of the product is made of high-quality cold-rolled steel, which is characterized by excellent design and high quality workmanship. The cabinet allows full depth adjustment of the vertical mounting rails. In addition, it is equipped with a front perforated door with a lock and the possibility of mounting this door on the right or left side.

This server product has removable side panels (each with a lock) and a rear perforated door with a lock. Cabling can be routed through the cable holes located at the top and bottom (with blank entry panels) of the cabinet. The fan tray contains 4 230V fans.

The cabinet also comes with two vertical cable organizers, additional rail mounting accessories, M6 cage nuts and blank input panels.

Features:
- Manufacturer: Lanberg,
- Manufacturer code: FA01-8042-23B,
- Cabinet type: freestanding,
- Body color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x1000x2047.5 mm,
- Height (top panel - bottom panel): 1968.5 mm,
- Height (top panel - floor): 2041.5 mm,
- Height (top panel - ground including screws): 2047.5 mm,
- Package dimensions (W x D x H): Top and bottom - 83x102x12 cm, Door -83x190x9.5 cm, Frame - 80x196x25 cm, Vertical cable routing - 18.5x190x11.5 cm,
- Floor panel: 4 casters with brake + adjustable feet,
- Internal spacing between rack rails: 450 mm,
- Rack rail hole spacing width: 465 mm,
- External width spacing between rack rails: 500 mm,
- Load capacity: up to 800 KG,
- Degree of protection: IP20,
- Top with fan shelf: 4x 230 V fans included in top cover,
- Door type: Front - Perforated, Rear - Perforated,
- Standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: high quality cold rolled steel, powder coated,
- Sheet thickness: front door - 1.5 mm; vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50 mm - 1.20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Package includes: accessory bag, locks for front and rear doors and two side panels, 20 M6 cage nuts, 2 vertical cable entry panels, grounding kit (2x cables).
